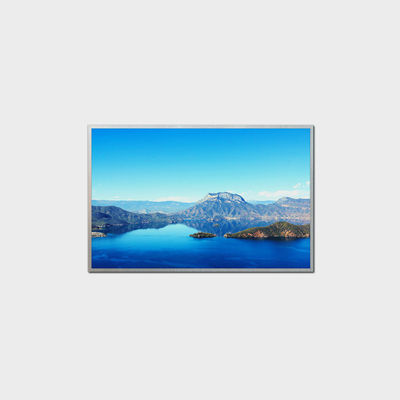

10.1 inch TFT LCD Display Outdoor Industrial Panel Support Android System
무료샘플과 쿠폰을 위해 나와 연락하세요.
WhatsApp:0086 18588475571
위챗: 0086 18588475571
스카이프: sales10@aixton.com
만약 당신이 어떠한 관심도 가지면, 우리가 24 시간 온라인 도움말을 제공합니다.
x제품 상세 정보
| 패널 크기 | 10.1" | 해결 | 1280*800 |
|---|---|---|---|
| 명도 | 1000 (타이핑) | 종횡비 | 16:9 |
| 활성 영역 | 216.96*135.6mm | 개요 차원 | 229.46*149.1*7.7mm |
| 강조하다 | 10.1 inch outdoor LCD display,industrial TFT panel Android support,high brightness LCD display panel |
||
제품 설명
10.1 inch TFT LCD Display Outdoor Industrial Panel Support Android System
10.1 inch TFT LCD Display Outdoor Industrial Panel Support Android System
High Brightness LCD Product Features
- Brightness customization 700-5000cd/m²
- Outdoor sunlight readable
- Low power consumption
- High uniformity up to 85%
- Aluminium backlight structure with good heat dissipation
- Wide temperature range up to -30°C-80°C
- High shock resistance and high stability
High Brightness LCD Product Applications
- Bus Stop Station
- Intelligent Charging Pile
- Outdoor Electronic News Reading Board
- Intelligent Express Cabinet
- Vending Machine
- Commercial Advertising
- Attractions Information Inquiry Machine
- Community Information Board
High Brightness LCD Data Sheet
| Brand | Rogin |
|---|---|
| Series | High Brightness LCD Display |
| Panel Size (inch) | 10.1 |
| Model | LCMA-RX0101GI01-C100 |
| Brightness | 1000 |
| Resolution | 1280*800 |
| Active Area | 216.96*135.6 |
| Overall Size | 229.46*149.1*7.7 |
| Viewing Angle | 85/85/85/85 |
| Interface Definition | LVDS (2 ch, 8-bit) |
| Backlight Type | WLED |
| Contrast Ratio | 800:1 |
| Aspect Ratio | 16:9 |
| Touch Panel | Without |
| Operating Temperature | -20~70℃ |
