12.1 Inch TFT LCD Solution With 1280*768 Solution Support Outdoor Application
무료샘플과 쿠폰을 위해 나와 연락하세요.
WhatsApp:0086 18588475571
위챗: 0086 18588475571
스카이프: sales10@aixton.com
만약 당신이 어떠한 관심도 가지면, 우리가 24 시간 온라인 도움말을 제공합니다.
x제품 상세 정보
| 이름 | 12.1 TFT LCD 디스플레이로 조금씩 움직이세요 | 패널 크기 | 12.1 " |
|---|---|---|---|
| 해결 | 1280*768 | 명도 | 1000 (타이핑) |
| 종횡비 | 4:3 | 활성 영역 | 245.76*184.32mm |
| 개략 차원 | 260.5*204*8.46mm | 인터페이스 | LVDS(1채널, 6/8비트) |
| 강조하다 | 12.1 inch high brightness LCD display,TFT LCD with 1280x768 resolution,outdoor application LCD display solution |
||
제품 설명

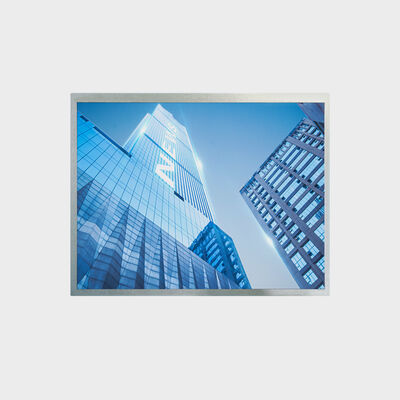

12.1 Inch TFT LCD Solution With 1280×768 Resolution Support Outdoor Application
Product Advantages
- Brightness customization 700-5000 cd/m²
- Outdoor sunlight readable
- Low power consumption
- High uniformity up to 85%
- Long lifetime: 50K hours (Typical), up to 80K hours
- Aluminium backlight structure with good heat dissipation
- Wide temperature range: -30°C to 80°C
- High shock resistance and high stability
Product Applications
- Bus Station Signage Board
- Intelligent Charging Pile
- Outdoor Electronic News Reading Board
- Intelligent Express Cabinet
- Vending Machine
- Commercial Advertising Machine
- Attractions Information Inquiry Machine
- Community Information Board
Specifications
| Model | LCMA-RX0121GR01-C100 |
| Brand | Rogin |
| Series | High Brightness LCD Display |
| Panel Size | 12.1 inch |
| Brightness | 1000 nits |
| Resolution | 1280 × 768 |
| Active Area | 245.76 × 184.32 mm |
| Overall Size | 260.5 × 204 × 8.46 mm |
| Viewing Angle | 89/89/89/89 |
| Interface Definition | LVDS (1 ch, 6/8-bit) |
| Backlight Type | WLED |
| Contrast Ratio | 1000:1 |
| Aspect Ratio | 16:10 |
| Touch Panel | Without |
| Operating Temperature | -30°C to 80°C |
