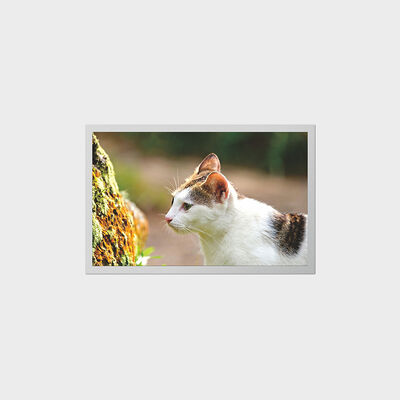

12.1 inch TFT Display With Low Power Consumption LCD for Portable Medical Devices
제품 상세 정보
| 이름 | 12.1 TFT LCD 디스플레이로 조금씩 움직이세요 | 패널 크기 | 12.1인치 |
|---|---|---|---|
| 해결 | 1280*800 | 명도 | 1500(일반) |
| 종횡비 | 16:9 | 활성 영역 | 261.12*163.2mm |
| 개략 차원 | 277.7*180.6*9.5mm | 인터페이스 | LVDS(1채널, 8비트) |
| 강조하다 | 12.1 inch TFT LCD display,low power consumption LCD,medical device LCD display |
||
제품 설명
12.1 inch TFT Display With Low Power Consumption LCD for Portable Medical Devices
Product Advantages
- Brightness customization 700-5000cd/m²
- Outdoor sunlight readable
- Low power consumption
- High uniformity up to 85%
- Long lifetime, 50K hours (Typ), up to 80K hours
- Aluminium backlight structure with good heat dissipation
- Wide temperature range up to -30°C to 80°C
- High shock resistance and high stability
Product Applications
- Bus Station Signage Board
- Intelligent Charging Pile
- Outdoor Electronic News Reading Board
- Intelligent Express Cabinet
- Vending HMI Machine
- Commercial Advertising Machine
- Attractions Information Inquiry Machine
- Community Information Board
Specifications
| Model | LCMA-RX0121GR03-C150 |
|---|---|
| Brand | Rogin |
| Series | High Brightness LCD Display |
| Panel Size | 12.1 inch |
| Brightness | 1500nits (Support Customization) |
| Resolution | 1280 × 800 |
| Active Area | 261.12 × 163.2mm |
| Overall Size | 277.7 × 180.6 × 9.5mm |
| Viewing Angle | 85/85/85/85 |
| Interface Definition | eDP (2 Lanes) |
| Backlight Type | WLED |
| Contrast Ratio | 1200:1 |
| Aspect Ratio | 16:9 |
| Touch Panel | Without |
| Operating Temperature | -20°C to 70°C |
