49.5 Inch High-Brightness Bar-Type TFT LCD Module for Outdoor Digital Signage
제품 상세 정보
| 이름 | 바 타입 LCD | 패널 크기 | 49.5" |
|---|---|---|---|
| 해결 | 1920*540 | 명도 | 2000년(일반) |
| 작동 온도. | -20~70℃ | 활성 영역 | 1209.6*340.2mm |
| 개략 차원 | 1233.6*364.2*54mm | ||
| 강조하다 | 49.5 inch outdoor TFT LCD module,high-brightness bar-type LCD display,digital signage bar LCD module |
||
제품 설명

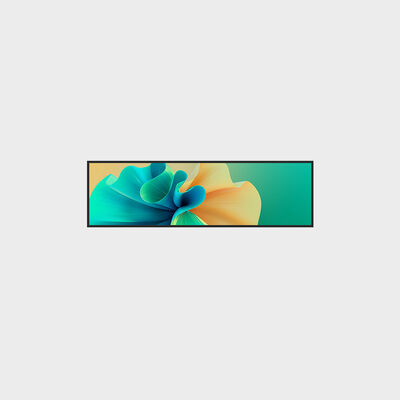

49.5 Inch High-Brightness Bar-Type TFT LCD Module for Outdoor Digital Signage
High-performance 49.5-inch bar-type TFT LCD module specifically engineered for outdoor digital signage applications, featuring exceptional brightness and durability.
Product Advantages
- Advanced cutting technology with 3 cutting machines and 2 production lines, supporting lengths up to 1.7m (75-inch cutting capacity)
- Precision cutting ensures high yield and dimensional accuracy
- High reliability with identical features to original panels
- Superior anti-vibration performance
- Customizable brightness ranging from 500 to 2500 nits
- Extended lifespan: 50,000 hours typical, up to 80,000 hours maximum
Product Applications
- Commercial signage: Advertising displays and price shelves
- Public transportation: Bus, metro, and light rail billboards
- Guidance boards and elevator advertising displays
- Financial services: Bank call notice boards
- Identification displays: Bus stops, stations, supermarkets
- Vehicle advertising: Taxi, bus, and subway advertising boards
Technical Specifications
Model: LCMA-RX0495TB08-Z200
| Brand | Rogin |
| Series | Bar Type LCD Display (Cutting Solution) |
| Panel Size | 49.5 inch |
| Model | LCMA-RX0495TB08-Z200 |
| Brightness | 2000 nits (Support customized) |
| Resolution | 1920 × 540 |
| Active Area | 1209.6 × 340.2 mm |
| Overall Size | 1233.6 × 364.2 × 54 mm |
| Interface Definition | LVDS (2 ch, 10-bit) |
| Backlight Type | WLED |
| Contrast Ratio | 1000:1 |
| Touch Panel | Without |
| Operating Temperature | -20 to 70 ℃ |
